Product Description
Casement Screens for Hurd Wood/Wood and Wood/Aluminum Casement Windows:
Screen Kit (knocked Down) assembly required. Kits comes with screen frame cut to size ordered, corners, screen mesh, spline, and spline tool. Everything you need to make your screen.
***NO RETURNS ON SCREEN ORDERS!***
Due to many sizes and colors: All screens are made to order allow 3-6 week lead time

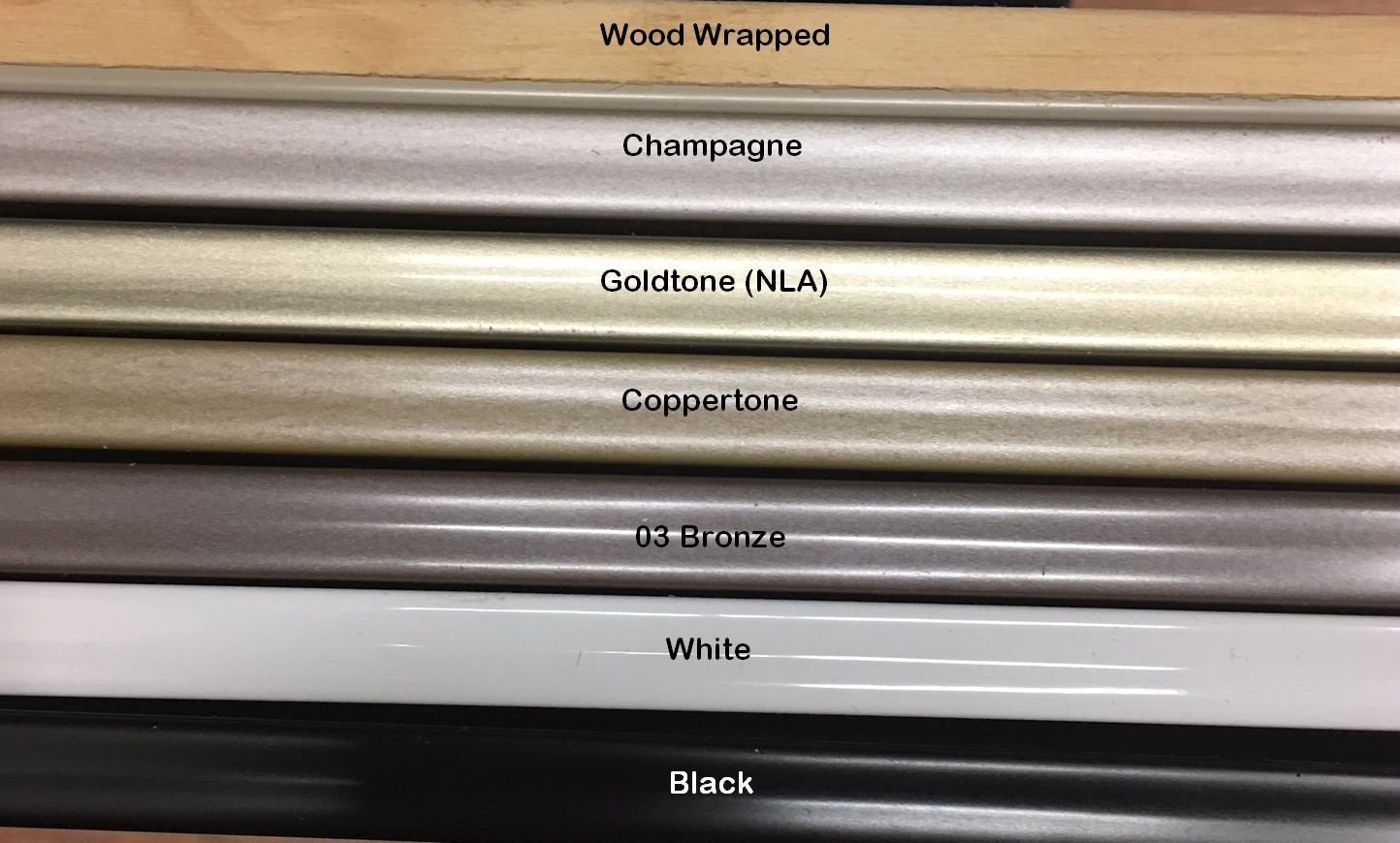

Goldtone and Coppertone Colors are Discontinued and Pin Plunger Style Screens are Discontinued
Manufacture Dates For Casement Windows::
Aluminum Clad: Lift Rail Screen made from 1998 to Present (available to order).
Wood/Wood: Lift Rail Screen made from 6/22/2012 - Present (available to order).
Wood/Wood Classic: Lift Rail Screen made from 1998 - 6/22/2012 (available to order)
ALL Plunger Style Screens for wood/wood and aluminum clad made from 1998 and Prior (no longer available)
How To Order New Screen for Casement Window (click on picture for diagram):
Step by Step instructional video on how find the Call Out to order Hurd Casement Screens. Check out our YouTube Channel below.
To find the Hurd Call Out Size, measure the visible glass width and visible glass height of your window sash. Then round your measurement up to the next odd inch.
Example:
If your visible glass measurement is 18 1/4" wide x 26 1/4" Height. Then round up to the next odd inch.
Your call out / what you would order would be 19 wide x 27 high.
Based off the 19 w x 27 h Call Out:
Aluminum Clad Lift Rail Screen made from 01/1998 to Present and All Wood (wood/wood) Lift Rail Screen made from 6/22/2012 - Present: Lift Rail Screen Frame size you will receive will be: 20.4375 (20 7/16 Inch) Wide x 27.375 (27 3/8 Inch) High
Wood/Wood Classic Lift rail screen frame size you will receive is: 19.9375 (19 15/16 inch) wide x 26.875 (26 7/16 inch) high
When you order screens based on the Call Out if you would like to include your screen size please put screen measurements in the order comment box along with the Call Out it corresponds too. If you do this screens will be ordered from the factory using your screen size you give us. Again please be exact on your screen size measurements down to the 16th of an inch and must be entered as Width X Height. There are no returns.
Helpful Tip: For Wood/Aluminum Casement Windows: Lift Rail type screens ***ARE NOT*** interchangeable with Plunger style screens made 1998 and Prior.
Aluminum/Wood Lift Rail & Plunger AND Current Wood/Wood Lift Rail Screen Formulas:
Screen Width - 1.4375 (1 7/16") = Glass Width / Call Out Width
Screen Height - 0.375 (3/8") = Glass Width / Call Out Height
Classic Wood/Wood Lift Rail Screen Formula:
Screen width - 0.9375 = Glass Width / Call Out Width
Screen Hight - 0.125 = Glass Hight / Call Out Hight
Wood/Wood Plunger Screen Formula (no longer available to order):
Screen Width - 1.4375 (1 7/16") = Glass Width / Call Out Width
Screen Height - 0.4375 (7/16") = Glass Height / Call Out Height
***NO RETURNS ON SCREEN ORDERS!***
